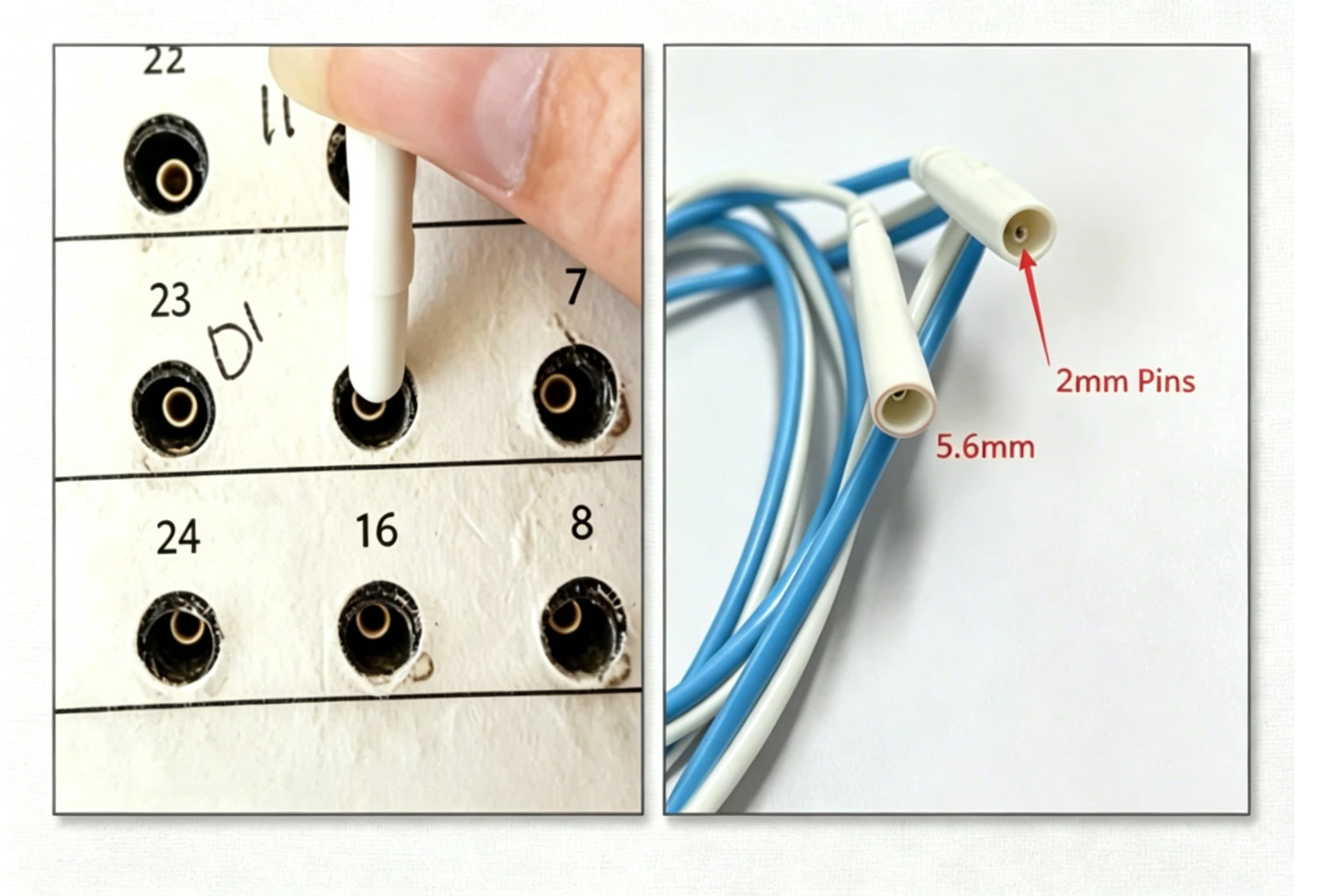

2mm Pin Biomedical Connector for ECG EGM EEG EMG Signal Acquisition, 5.6mm Sleeve, Custom Cable Assembly
Couldn't load pickup availability
This compact 2mm biomedical connector is designed for specialized physiological signal connection and biomedical signal acquisition applications. Featuring a 2mm pin interface and 5.6mm outer protective sleeve, this 2mm ECG connector is suitable for integration into custom biomedical cables, laboratory test leads and physiological signal connector assemblies. It serves as a reliable biomedical signal connector and biomedical signal acquisition cable component for OEM medical device manufacturers worldwide.
Key Features
- Gold-plated 2mm contacts: Ultra-low contact resistance for accurate transmission of faint bioelectrical signals, ideal for 2mm EEG connector and 2mm EMG connector applications
- Fully insulated 5.6mm sleeve: Medical grade TPU insulation with no exposed metal, meets IEC 60601 electrical safety requirements for electrophysiology connector use
- Wide compatibility: Mates with standard 2mm medical receptacles including Mill-Max 0387 series, suitable as bio-amplifier connector and medical equipment replacement connector
- OEM customizable: Full support for custom cable length, color, and end configurations for custom biomedical cable assembly projects of any scale
Typical Applications
This 2mm EGM connector is widely used across medical and biomedical research fields:
- ECG signal acquisition, ECG test cable and ECG replacement connector production
- EGM signal recording and electrophysiology equipment connection
- EEG signal acquisition, EEG test cable and EEG replacement cable manufacturing
- EMG signal testing, EMG test cable and EMG signal connector assembly
- Bio-amplifier connection and biomedical instrumentation integration
- Laboratory research equipment and biomedical test cables
- Custom medical cable assemblies for OEM medical device manufacturers
- Patient monitor internal signal connection and R&D prototyping
Mechanical Specifications
| Specification | Details |
|---|---|
| Pin diameter | 2mm standard medical pin |
| Outer sleeve diameter | 5.6mm |
| Contact plating | Gold plated (low contact resistance, anti-oxidation) |
| Sheath material | Medical grade TPU, biocompatible, disinfectant-resistant |
| Product type | Biomedical pin connector / cable assembly |
| Primary application | Physiological signal connection and acquisition |
| Target systems | ECG / EGM / EEG / EMG medical devices |
| Compatible receptacle | Mill-Max 0387 series & all standard 2mm medical sockets |
| Compliance | IEC 60601-1 (defibrillation rated), RoHS compliant |
Frequently Asked Questions
What medical devices is this 2mm biomedical connector compatible with?
It is compatible with all standard 2mm medical receptacles including Mill-Max 0387 series, and is widely used as 2mm ECG connector, 2mm EEG connector, 2mm EMG connector and 2mm EGM connector for patient monitors, electrophysiology instruments, bio-amplifiers and biomedical research equipment.
Can I order this as a replacement part for my existing medical equipment?
Yes. It can be used as ECG replacement connector, EEG replacement cable, EMG signal connector and general medical equipment replacement connector. Please provide your original connector dimensions and cable specifications for exact matching.
Do you manufacture custom test cables for ECG, EEG and EMG applications?
Absolutely. We specialize in custom ECG test cable, EEG test cable and EMG test cable manufacturing. We support custom length, connector types and shielding specifications for both laboratory testing and clinical R&D use cases.
What is the minimum order quantity (MOQ) for custom cable assemblies?
For prototype and R&D evaluation orders, we offer low MOQ starting from 5-10 units. For mass production custom biomedical cable assembly orders, MOQ starts from 500 units with competitive tiered pricing based on order volume.
What medical safety standards does this connector comply with?
It meets IEC 60601-1 medical electrical safety requirements for defibrillation protection, and uses RoHS compliant medical grade materials. It is suitable for both clinical medical equipment and biomedical research applications.
What is the lead time for samples and mass production?
Standard connector samples can be shipped within 3-5 working days. Custom cable assembly samples take 7-10 working days. Mass production lead time is 25-35 days depending on order quantity and customization requirements.
