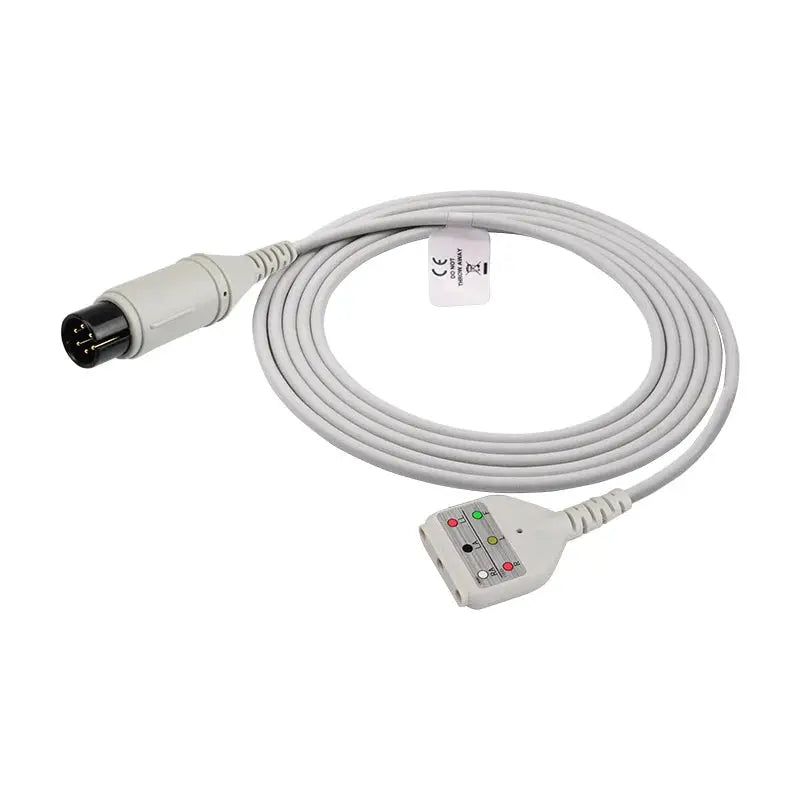

Mindray > Datascope Compatible ECG Trunk Cable

MED-LINKET CORP

Regular price $59.99

Shipping calculated at checkout.

Product Specification:

Category ECG Lead Number 3

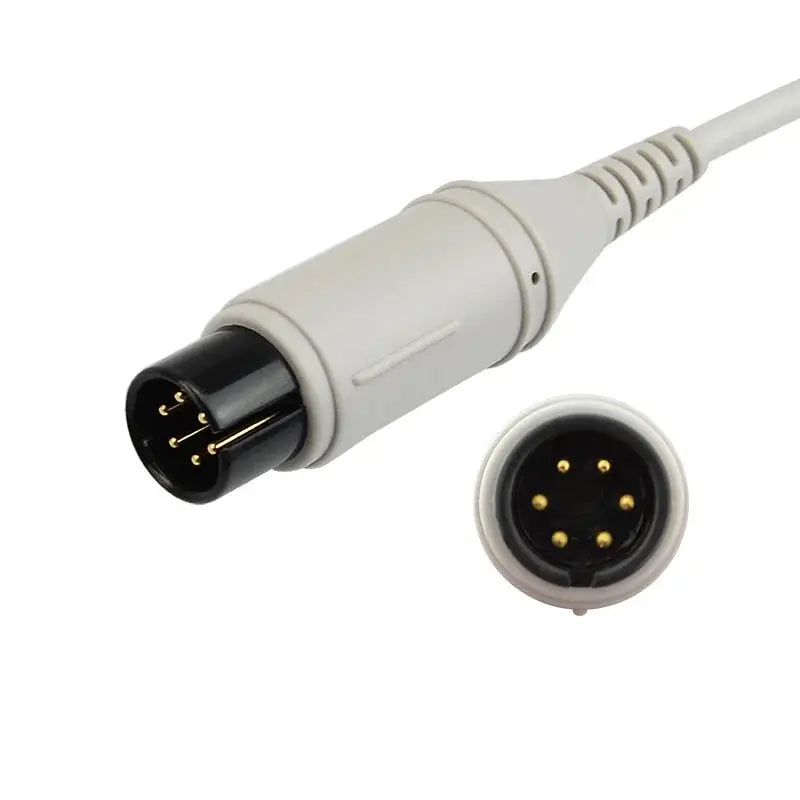

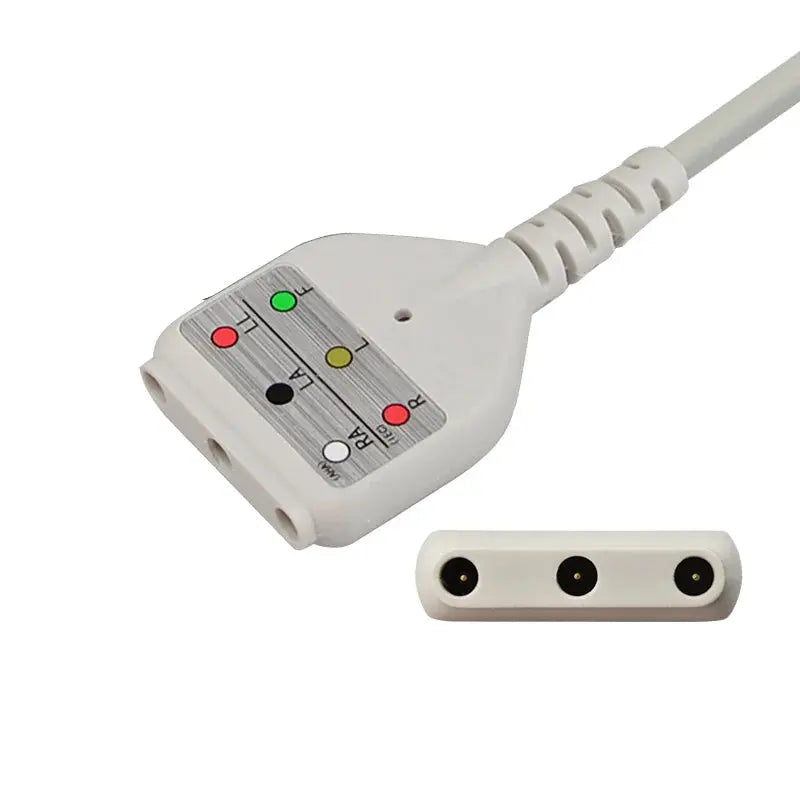

Connector Distal Round, 6-pin Connector Connector Proximal Din-Style Connector
Total Cable Length 9ft(2.7m) Patient Size Adult/Pediatric
Cable Material TPU Jacket Sterile No
Lead Color Coding AHA Resistance No
Packaging Unit 1   Packaging Type Anti-static packing bag
Weight 0.4 lb Warranty 6 months since the date of purchase
Compliance FDA, CE, ANSI /AAMI EC53:2013, ISO10993-1, 5, 10, TUV, RoHS Compliant

OEM Part Number Cross References:

Manufacturer OEM Part #
AMC CB-71340
Covidien > Kendall 1340PS
Criticare 1094/3
Curbell CB-71355, CB-71314, CB-71316
Mindray > Datascope 0012-00-0991-01 (10 ft), 0012-00-1255-09, 0012-00-0991-02 (20 ft)
RPI KCA016 (10 ft), KCA001 (10 ft resistors), KCA004 (10 ft resistors), KCA007 (10 ft)
Sage T11-03-30M
Spacelabs 012-0108-01, 012-0201-00
Tenacore 41340
Welch Allyn WA-6200-01, 008-0316-00, 008-0429-00 (Right Angle 9 ft (2.7 m))

Compatibility:

Manufacturer Model
AAMI All
ATL 800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound, CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL, Mark IV, Mark Vii, Ultramark 4/5/7/9
ATL 800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound, CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL, Mark IV, Mark Vii, Ultramark 4/5/7/9
Abbott EX-50, Lifecare 5100, Lifecare 5200
Advanced Instrumentations PM-1000, PM-1000EX
American Optical  26125, 33167, 5260, 5330, Pulsar 4
Carewell  CPM-8000
Conmed 90347
Contec  CMS 6800, CMS 9000
Covidien > Nellcor C-LOCK, N-1000, N-200, N-250, NPB-3900, NPB-4000
Criticare 1100, 2200, 504US, 504USP, 506, 507, 507E, 507ELC2, 507S, 508, 602-4B, 602-4USP, 8100, 8100E, 8100EP, Poet 2, Scholar, nCompass, nGenuity 8100E
DIN Style All
DRE Waveline EZ MAX
Datex Ohmeda enGuard CM5
Digicare LW600
Draeger > Air Shields HRRM-71-1, HRRM-71-2, II, III, Porta-Fib I, Porta-Fib II, Porta-Fib III, System 5 (New), System 6 (Neonatal)
Draeger Vitalert 2000, Vitalert 3000
Edan M50, M8, M80, M8A, M8B, M9, M9A
GE Healthcare > Corometrics 556
GE Healthcare > Critikon > Dinamap 8100T, 8700 Series, 8700/9700, 9700 Series, MPS Select, Pro 1000
Goldway G40, UT4000A, UT4000Apro, UT4000B, UT4000C, UT4000F, UT4000F Pro, UT4800, UT6000A, UT6000F
Guthan 1000
Infinium Infitron II, Omni, Omni II
Interspec (Irex) (JandJ) Cardiology XL, Mark IV, Mark Vii, Ultramark 4, Ultramark 4 Plus, Ultramark 5, Ultramark 7, Ultramark 9
Invivo 101, 102, 200, 300, 360SL, 450SL, 521A, Escort 100, Escort 101, Escort 102, Escort 200, Escort 300, Millennia 3500, PortaPak 1000, PortaPak 80, PortaPak 90, PortaPak 90/1000, Prism
Ivy Biomedical 101, 101 (before 1989), 3000, 402, 450C, 700, 7800, CM5, Cardiac Trigger Monitor 3150
LSI 261, LS5
Mediana YM6000
Midmark > Cardell 9403V, 9405, MAX-12 Duo HD, Max-1
Mindray > Datascope MEC 1000, MEC 1200, MEC 200, MEC 2000, PM 7000, PM 8000, PM 9000, PM-9000Vet
Nihon Kohden 7102A, BSM-7102A, BSM-7300A, BSM-8108A, BSM-8301A, BSM-8302A, BSM-8500A, BSM-8502A, BSM-8800A, Life Scope 12, Life Scope 6, Life Scope 7, Life Scope 8, Life Scope 9, MU-831RA, NT3B, OEC-6102A (s/n>20156), OEC-6105A (s/n>20226), OEC-7102A, OEC-8108A, Omnicare CMA, TEC 5531E, TEC-5200A (s/n>20421), TEC-7100A, TEC-7200A, TEC-7300A
Novametrix 902, 903, 910, Life Defense 1
Omron > Colin BP-308, BP-408, CBM3000, M20, M30, MS20
PPG Guardian 1001, N1001
PaceTech 2100, 2200, 4000, 4100, MiniMax 4000CL, Minipack 300, Minipack 3000, Minipack 3000/3100, Minipack 3100, Modular/4100CL, Vitalmax 2100, Vitalmax 2200, Vitalmax 4000, Vitalmax 4000 Modular, Vitalmax 4000CL, Vitalmax 4100, Vitalmax 4100CL, Vitalmax 800 Plus
Philips M3921A A1, M3923A A1, M3925A A1, M3927A A3, M3929A A3, iE33 xMatrix Ultrasound CX50
Smiths Medical > BCI 3101, 3404, 6100, 6200, 9100, 9200, Advisor, Autocorr, Autocorr: Surgivet, SurgiVet V9200
Spacelabs 400, 500, 600, 67112, 900, 90300, 90303, 90303B, 90308, 90400, 90408, 90425, 90428, 90431, 90432, 90470, 90600, 90603A, 90700, 90701, 90721, 90724, AriaTele, Medic 3, Medic 4, Medic 5, Medic 6, PC Bedside, PCMS, Series 500, Series 600, Series 900, TEK-208, TEK-208/408/511/512/514/521, TEK-408, TEK-413, TEK-414, TEK-511, TEK-512, TEK-514, TEK-5214045
Stryker > Medtronic > Physio Control 1440/R, Lifepak 10, Lifepak 5, Lifepak 6, Lifepak 6S, Lifepak 7, Lifepak 8, Lifepak 9, VSM-1ESF, VSM-2, VSM-2ESF, VSM-3
Tektronix 4045 Defib/208/400/500 Series
Welch Allyn 1500, 242, Atlas, Atlas 6200 Series, PIC 30, PIC 40, PIC 50, Propaq 100 Series, Propaq 200 Series, Propaq 206 EMPSC, Propaq CS, Propaq Encore, Propaq Encore 206EL, Ultra Smart
Zoll D900, E Series, M Series, PD1200, PD1400, PD1600, PD1700, PD2000, R Series
